Communication#

The fiskaltrust.Middleware supports different communication protocols, effectively giving our users the possibility to use it on all currently available platforms and implement the interface in all state-of-the-art programming languages. This enables our users to choose the communication type that suits their scenario best.

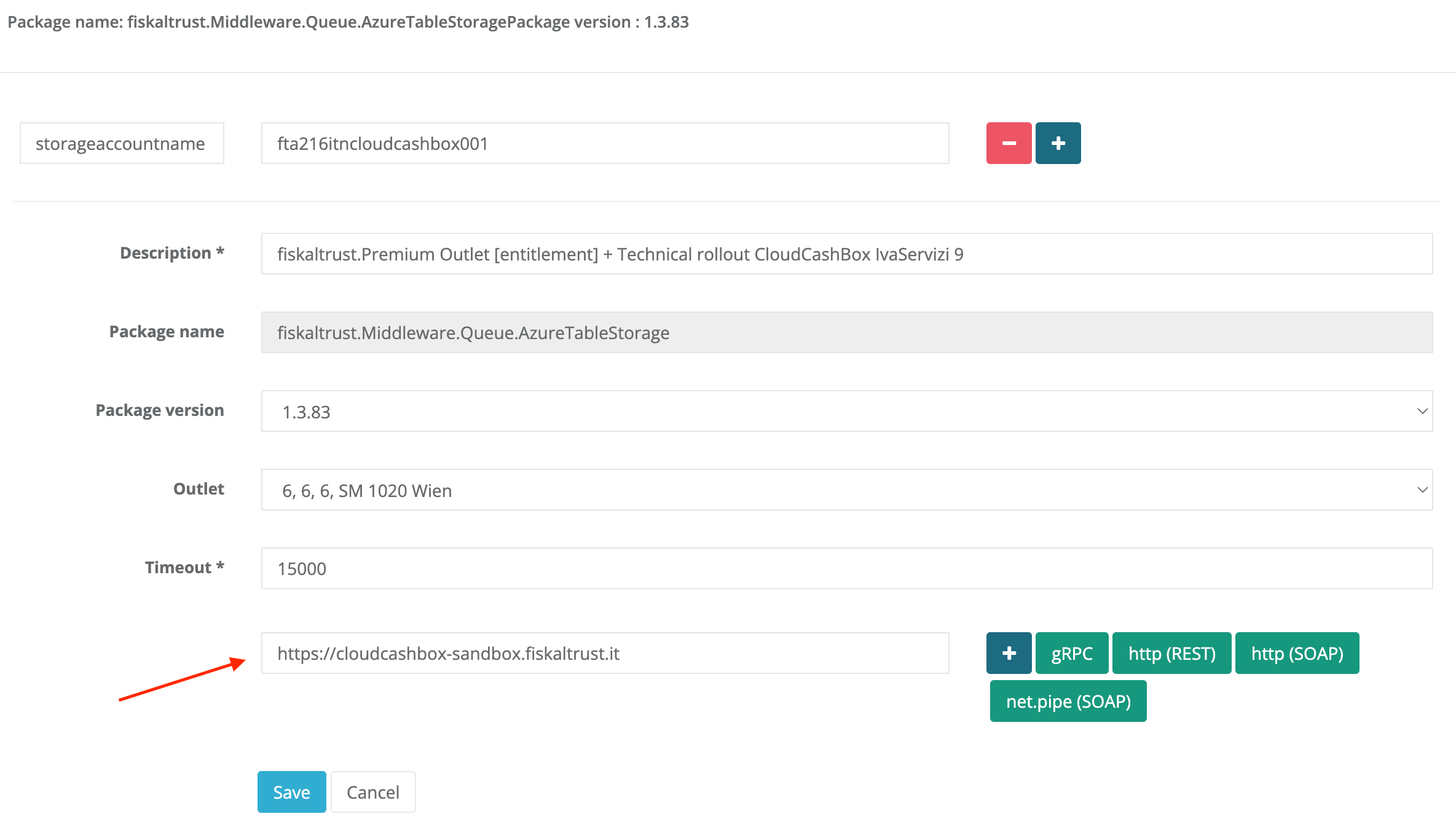

The communication protocol is specified by setting the respective URL in the package configuration of the fiskaltrust.Portal. The buttons to the right of the URL field can be used to quickly insert the respective URL:

queue-configuration

Buttons for other URL options (like gRPC) may be available as well, depending on the country.

info

Depending on the version of the Middleware, different protocols are supported (for a summarized overview, please see the table at the end of this section). We're currently working on unifying the Middleware experience for all markets to provide the same communication protocols for all markets and operating system.

gRPC#

The gRPC protocol is currently only available in the Middleware for Germany, please see the German appendix for further information.

We recommend using gRPC for new implementations, as it has several advantages (including performance, reliability, asynchronous streams, and static message contracts) and is supported by most programming frameworks.

REST web service#

When selecting REST (Representational State Transfer), the Middleware hosts a HTTP service that can be used like any commonly used web service. Messages can either be encoded with JSON or XML, depending on the user's preference.

The offered REST functions accept POST request, the URL is composed like this: http://[specified-url]/[xml|json]/[v0|v1]/[echo|sign|journal].

For sample requests of the most commonly used receipt cases and journals, please have a look at our Postman Collection.

XSD files which describe the REST interface of the fiskaltrust.Middleware are available at dist/XSD.

We recommend using REST in case you're already familiar with its principles and don't want to use gRPC for any reasons.

Country specifics#

In Austria and France, REST can currently only be used by adding a helper package provided by fiskaltrust. Please refer to the Austrian appendix for more details. In Germany, the Middleware natively supports REST without using a helper.

WCF Web Service#

The Windows Communication Foundation (WCF) is used to access the fiskaltrust.Middleware with SOAP calls, either via a network or a pipes based communication approach. Further information on this subject can be found in the official Microsoft docs.

WCF supports different underlying protocols: http, https, net.tcp and net.pipe (which is most interesting in cases where the system's configuration prevents opening TCP ports). For configuring a custom message size and a custom time out, it is possible to specify the parameter messagesize (in bytes) and the parameter timeout (in seconds) on the configuration page.

A WSDL file which describes the WCF interface of the fiskaltrust.Middleware is available at dist/WSDL.

User specific protocols#

With the Middleware's helper topology, it is possible to connect the Middleware to POS-Systems in every scenario, as it can be easily extended to support any other protocol as well. Please contact our support if you require assistance for a special case.

Summary#

The following table displays which protocols are currently available in which country:

Communication serviceATDEFR
gRPCnot yet supportedsupportednot yet supported
RESTsupported (via helper)supportedsupported (via helper)
WCFsupportedsupportedsupported
serial/TCPsupported (via helper)not supportednot supported

As mentioned above, the Middleware versions will be unified in the upcoming version 2.0.

Sample implementations#

Our latest samples, which demonstrate the communication protocols we recommend for the respective languages, are available here:

csharp           java           node           android           node

Additionally, other samples (including legacy ones) can be found in our demo repository.
